Fairey Swordfish

 Jump to: Variants : Photos : On Display

Nicknamed the 'Stringbag' the Swordfish would go on to outlive a number of aircraft which had been intended to replace the type, and would not be retired until after the defeat of the German Armed Forces. The Fairey Swordfish is, perhaps, best known for its raid on the Italian fleet at Taranto.

Quick Facts
Sorry, no image available
First flight
17th April 1934
Entered service
1936
Total built
2,391

Front view
Swordfish front view photo
Side view
Swordfish side view photo
Rear view
Swordfish rear view photo

The Swordfish had its roots in a private venture bi-plane known as the T.S.R I designed by Fairey and this plane had showed promise for future development that, despite being written off during September 1933, Fairey were working on the T.S.R. II. It would be this improved design that Fairey submitted to the Air Ministry in response to Specification S.15/33 calling for a torpedo-spoter-reconnaissance plane for use aboard a carrier.

The following year saw the Fairey Swordfish prototype fly for the first time on the 17th April 1934 with eighty six Swordfish aircraft being ordered the following April. The Swordfish Mk I would be powered by a 690-hp Bristol Pegasus IIIM radial engine, which enabled a top speed of 139 mph, be able to old a crew of three, featured folding wings, fixed landing gear, although if required they could be replaced by floats, armament of one 0.303-in machine-gun and either a Vickers 'K' gun or Lewis gun in the rear. Bomb load was either a torpedo, mine or 1,500lb of bombs and was built to Air Ministry Specification S.38/34.

No. 825 Squadron, who at the time were using Fairey Seals, were the first to be equipped with the type during July 1936, a further three squadrons had their aircraft replaced by the end of the year. These were No. 823 Squadron, who were also using the Seal, and Nos 811 and 812 Squadron who at the time were using Blackburn Baffins, and by the end of 1938 the Swordfish was the Fleet Air Arms only torpedo-bomber.

By the time the Second World War broke out the FAA had a total of thirteen Fairey Swordfish squadrons of which twelve were operational aboard carriers, but it wasn't until the Norwegian campaign began on the 9th April 1940 that the type saw major involvement in hostilities. This was two days later when Swordfishes operating from HMS Furious and armed with torpedoes were involved in action, followed on the 13th April by HMS Warspite Swordfishes scoring the first FAA sinking of a U-boat, U-64.

The Fairey Swordfish Mk II appeared in 1943 and featured a number of changes, including the ability to be armed with rocket projectiles. As with the Mk I the Bristol Pegasus IIIM was the engine of choice, although later models would be fitted with the Pegasus XXX. As the war progressed the types vulnerability began to become more prevalent and the Swordfish moved into an anti-submarine role and this meant the Mk III had ASV (Air-to-Surface Vessel) Mk X radar installed, and this was the final production version.

The highlight of the Swordfish's service with the Fleet Air Arm occurred on the 11th November 1940 when twenty one aircraft attacked the Italian fleet at Taranto and succeeded in destroying one battleship and damaging two others. The following May the type played a vital role in the sinking of the Bismarck, when on the 26th Swordfish from HMS Ark Royal attacked and jammed the rudder of the battleship. However, the following year on the 12th February 1942 a disastrous attack as part of Operation Fuller, also known as the Channel Dash, saw all six Swordfish aircraft flying from RAF Manston shot down trying to attack the Gneisenau, Scharnhorst and Prinz Eugen as they tried to escape through the English Channel. Of the 18 aircrew only 5 survived. It was during this attack that the first Victoria Cross was awarded to a member of the Fleet Air Arm when Lieutenant Commander Esmonde was posthumously awarded the medal. As a result no further large attacks of this type were made by the aircraft.

In total 2,391 Fairey Swordfishes would be produced by both Fairey and Blackburn, and at its height at least twenty six squadrons used the type, fulfilling a variety of roles with the Fleet Air Arm and Coastal Command. This included mine laying, convoy protection and training, and when No. 836 Squadron was disbanded on the 21st May 1945 the Swordfish's front line service ended. Perhaps the biggest compliment to the Swordfish is its durability and that when Nos 415 and 119 Squadron had their Fairey Albacores replaced it was for the Swordfish, the very aircraft the Albacore had been intended to replace.



Variants

Click on the aeroplane image to view a larger version.

Max Speed Range Service Ceiling Armament
Swordfish Mk I 139 mph 546 miles 10,700 ft two 0.303-in machine-guns
and either a torpedo, mines
or 1,500lb bombs
Swordfish Mk II 139 mph 546 miles 10,700 ft two 0.303-in machine-guns
and either a torpedo, mines
1,500lb bombs, depth charges
or rocket projectiles
Swordfish Mk III 139 mph 546 miles 10,700 ft two 0.303-in machine-guns
and either a torpedo, mines
1,500lb bombs, depth charges
or rocket projectiles
Swordfish Mk IV Featured an enclosed cockpit for use with the Royal Canadian Air Force.



Photos





On Display

(C) = Cockpit only exhibit. (F) = Fuselage only exhibit. (R) = Remains of an aircraft.

Variant Location
Swordfish Mk II Fleet Air Arm Museum

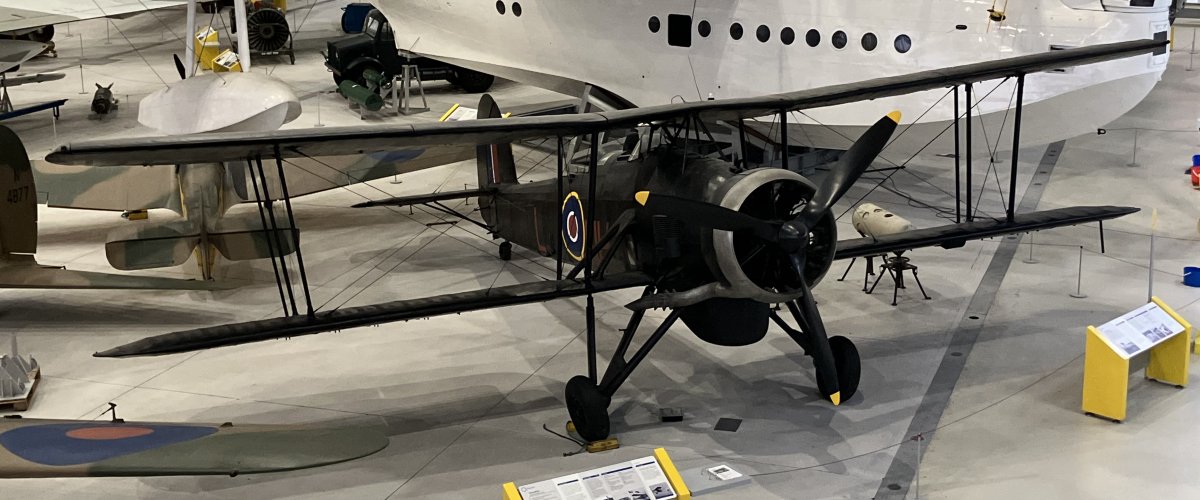

Swordfish Mk III Imperial War Museum, Duxford
