de Havilland Mosquito

Technical Details : Photos : See This Aircraft
Home  >  Aircraft Database  >  British Aircraft  >  de Havilland Mosquito

Nicknamed 'The Wooden Wonder' the twin-engined Mosquito would prove to be an extremely versatile aircraft. Originally conceived as a bomber, serving with Bomber Command, the aircraft was also used as a fighter, intruder, Pathfinder and for reconnaissance. The de Havilland Mosquito would take part in Operation Jericho and other low-level operations.

Quick Facts
de Havilland Mosquito side profile image
First flight
25th November 1940
Entered service
13th July 1941
Total built
7,781

Front view
Mosquito front view photo
Side view
Mosquito side view photo
Rear view
Sorry, no view photo available

During late 1938 de Havilland set about designing an aircraft that could be used for either reconnaissance or as a bomber. The concept of the aircraft was that it wouldn't require defensive armament as its speed and altitude would protect it from enemy defences. It was intended for this new aircraft, designation DH.98, to be built using wood and powered by a pair of Rolls-Royce Merlins. After submitting their design little interest was shown by the Air Ministry and the project was put on hold.

With the break out of war in September 1939, and German U-boats proving a constant threat to British shipping and the light alloy imports required for aircraft production, the idea of a wooden aircraft was intriguing for the Air Ministry, in case of a light alloy shortage. So the go-ahead was given to de Havilland to begin detailed design and during December 1939 this began, followed three months later on the 1st March 1940 by an order for a prototype and 50 production examples. This was placed under Specification B.1/40 which was written specially for this aircraft.

With the Allied evacuation from Dunkirk, France a couple of months later and the upcoming Battle of Britain (10th July 1940 - 31st October 1940) requiring production to be focused on current aircraft types, in particular fighters, the DH.98 project was officially put on hold. de Havilland though told his team to keep working on the project which was officially restarted a couple of months later. The Mosquito would be built mainly of plywood and balsa wood. This made the aircraft lighter and also easier to repair any battle damage. Construction of the type saw each half built and fitted before both sections were put together.

Normally housing a crew of two, consisting of a pilot and navigator, the first of the three prototypes to fly, intended as an unarmed bomber, was ready for its maiden flight to take place on the 25th November 1940. Flying from Hatfield with Geoffrey de Havilland Jr at the controls, this first flight and further flights showed that the aircraft had enormous potential. On the 29th December 1940 the prototype was demonstrated to the Air Ministry and as a result 150 were ordered of the now nicknamed 'Wooden Wonder'. The following year on the 19th February 1941 the Mosquito started to undergo trials at the Aeroplane and Armament Experimental Establishment at Boscombe Down.

It was the Mosquito PR.Mk I which was the first of the type to enter service, the 10th June 1941 seeing the prototype make its maiden flight. Powered by the 1,460-hp Rolls-Royce Merlin 21 engine, it had a top speed of 382 mph, range of 2,180 miles with a service ceiling of 35,000 ft, no armament was installed. Entering service on the 13th July 1941 with No. 1 Photographic Reconnaissance Unit based at RAF Benson, they performed their first operational sortie with the type on the 17th September 1941 when a sole example performed reconnaissance over Brest, La Pallice and Bordeaux, France during the day. This would see the high speed of the aircraft as a way of defending itself instead of armament put to the test when three Messerschmitt Bf 109s were sent to intercept the Mosquito, a test it passed as they failed to do so.

The prototype of the Mosquito fighter made its first flight on the 15th May 1941. Entering service as a night fighter, fitted with Airborne Interception radar Mk IV. The Mosquito NF.Mk II was powered by the 1,460-hp Rolls-Royce Merlin 21 engine, giving the aircraft a top speed of 370 mph, a range of 1,705 miles and a service ceiling of 36,000 ft. Armament consisted of eight guns mounted in rows of four. The top row was four 0.303-in machine-guns whilst the bottom row was four 20mm cannons. It would be during January 1942 with No. 157 Squadron based at RAF Castle Camps, which had been reformed on the 13th December 1941, that the aircraft would first be delivered to. The squadron used the Mosquito NF.Mk II for its first night operation on the 27th April 1942.

To help crews convert to the aircraft, a Mosquito T.Mk III would be produced, featuring dual controls. The prototype would be a converted Mosquito NF.Mk II, and this made its first flight on the 30th January 1942. Powered by the 1,460-hp Rolls-Royce Merlin 21 engine, its top speed was 384 mph, range 1,560 miles with a service ceiling of 37,500 ft, no armament was installed. The first Mosquito T.Mk IIIs would enter service in August 1942.

The Mosquito B.Mk IV bomber was powered by the 1,460-hp Rolls-Royce Merlin 21 engine. This gave the aircraft a top speed of 380 mph, a range of 2,040 miles and a service ceiling of 34,000 ft. No armament was installed and bomb load was 2,000lb. With the first production example flying on the 8th September 1941. These would begin to enter Royal Air Force service when No. 105 Squadron, based at RAF Swanton Morley, began to replace their Bristol Blenheim Mk IVs with the type. Their first sortie with the type saw four raid Cologne, Germany on the 31st May 1942 with all returning back to base.

Four months later four Mosquitos from No. 105 Squadron attacked the Norwegian headquarters of the Gestapo in Oslo at low-level on the 25th September 1942 with the following day seeing the type revealed to the British public. This wouldn't be the last low-level nuisance raid carried out by the squadron. Another such raid on the 30th January 1943 saw a radio speech by Herman Goring interrupted when the broadcasting station in Berlin, Germany was attacked.

The Mosquito FB.Mk VI, which would be the most produced variant, was a fighter-bomber powered by the 1,635-hp Rolls-Royce Merlin 25 engine. Its top speed was 380 mph, range 1,205 miles with a service ceiling of 33,000 ft. Armament consisted of four 0.303-in machine-guns in the nose and four 20mm cannons. Bomb load was 2,000lb or rocket projectiles. The prototype made its maiden flight on the 1st June 1942 and entered service the following year on the 11th May 1943, when No. 418 Squadron, Royal Canadian Air Force, based at RAF Ford received their first two as they began to replace their Douglas Boston Mk IIIs. The Mosquito FB.Mk VI would equip over 20 squadrons serving over Europe and it would also see action in the Far East.

It was to be a modified Mosquito FB.Mk VI, which had been strengthened and had an arrestor hook fitted, that had the distinction of becoming the first twin-engined British aircraft to land on an aircraft carrier, when on the 25th March 1944, Captain Eric 'Winkle' Brown achieved the feat aboard HMS Indefatigable (R10). This in turn would lead to the Sea Mosquito.

Due to the Mosquito's ability to perform precision strikes, it was chosen for Operation Jericho. Taking place on the 18th February 1944 this saw nineteen Mosquito FB.Mk VIs, comprised from Nos. 21, 464 and 487 Squadron, escorted by fourteen Hawker Typhoons attack Amiens prison in France with the intention of releasing resistance and political prisoners by breaching the prison wall. Whilst the wall was breached 102 prisoners were killed, 258 escaped but most were recaptured. Two Typhoons and Two Mosquitos were shot down and of the six airmen four were killed in action, including Group Captain Percy Charles Pickard, and two taken prisoner of war.

The Mosquito was also earmarked for use to carry a Barnes Wallis designed bouncing bomb given the codename “Highball”. The idea being that it would be used to attack the capital ships of the German Navy. This would lead to the formation on the 1st April 1943 of No. 618 Squadron who would spend a year in training, however, their intended target had moved and “Highball” would not be used.

Another role that the Mosquito performed was that of a Pathfinder. This would see the Mosquito fly ahead of the main bomber force dropping different coloured flares over the target with the help of the Oboe targeting system. Other duties for the Pathfinder Mosquitos saw them carry out bombing raids and drop 'Window'. This was designed to mimic a bomber stream on a radar screen. The Mosquito Pathfinder Force helped to improve the accuracy of bombing.

The Mosquito continued to serve with the Royal Air Force post-war, it was a Mosquito PR.Mk 34A of No. 81 Squadron that would fly the last operational mission of the type, this occurred on the 15th December 1955. A number of Mosquitos would serve until the 9th May 1963, when No. 3 Civilian Anti-Aircraft Co-Operation Unit retired their single Mosquito T.Mk III and five Mosquito TT.Mk 35s. Bringing the Mosquito's Royal Air Force service to an end after 22 years.

An extremely versatile aircraft, over thirty five variants were built and it would serve with a number of air forces, including the United States Army Air Force and the Royal New Zealand Air Force. In total 7,781 Mosquitos were built in the UK, Canada and Australia, with the first Australian example, known as the Mosquito FB.Mk 40, making its maiden flight on the 23rd July 1943, with the 15th November 1950 seeing the last production version built, a Mosquito NF.Mk 38.



Technical Details

Click on the aircraft image to view a larger version.

Top Speed Range Service Ceiling Armament
Mosquito PR.Mk I 382 mph 2,180 miles 35,000 ft none
Mosquito NF.Mk II 370 mph 1,705 miles 36,000 ft four 20mm cannons
four 0.303-in machine-guns
Mosquito T.Mk III 384 mph 1,560 miles 37,500 ft none
Mosquito B.Mk IV 380 mph 2,040 miles 34,000 ft 2,000lb bombs
Mosquito B.Mk IV side profile image
Mosquito B.Mk V Sole prototype built.
Mosquito FB.Mk VI 380 mph 1,205 miles 33,000 ft four 20mm cannons
four 0.303-in machine-guns
and either 2,000lb bombs or
rocket projectiles
Mosquito B.Mk VII 25 Canadian built Mosquito B.Mk IVs with 1,390-hp Packard Merlin 31 engines.
Mosquito PR.Mk VIII Mosquito PR.Mk IVs fitted with Merlin 61s with two stage supercharger for use at high altitude.
Mosquito B.Mk IX Same as the Mosquito B.Mk IV but with a 1,680-hp Merlin 72, a few had Merlin 70 or 77 engines.
Mosquito FB.Mk X Intended to be similar to the Mosquito FB.Mk VI with Merlin 67 engines fitted, none built.
Mosquito NF.Mk XII Converted Mosquito F.Mk IIs with machine-guns removed.
Mosquito NF.Mk XIII Like the Mosquito NF.Mk XII but with AI Mk VIII radar and based on the Mosquito B.Mk VI and fitted with either Merlin 21 or 23 engines and its four 0.303-in machine-guns removed.
Mosquito NF.Mk XIV Intended to be a Mosquito NF.Mk XIII fitted with a Merlin 67 engine, none built.
Mosquito NF.Mk XV Five Mosquito B.Mk IVs converted to a high altitude fighter with a pressurised cockpit and increasd wingspan.
Mosquito PR.Mk XVI Similar to the Mosquito Mk IX models, it appeared as Mosquito PR.Mk XVI and Mosquito B.Mk XVI with pressurised cockpits.
Mosquito NF.Mk XVII Converted Mosquito F.Mk IIs.
Mosquito FB.Mk XVIII Essentially a Mosquito FB.Mk VI but its four 20mm cannons replaced with a 57mm cannon.
Mosquito NF.Mk XIX Based on the Mosquito NF.Mk III & Mosquito NF.Mk XVII and fitted with Merlin 25 engines.
Mosquito B.Mk XX Same as the Mosquito B.Mk VIII but built in Canada and fitted with Packard Merlin 31s or 33s.
Mosquito FB.Mk 21 Canadian built Mosquito FB.Mk VI, only three produced.
Mosquito T.Mk 22 Six Canadian built Mosquito T.Mk IIIs.
Mosquito B.Mk 23 Mosquito B.Mk XXs intended to be powered by Packard Merlin 69s, none built.
Mosquito FB.Mk 24 Sole Packard Merlin 301 powered Mosquito FB.Mk 21.
Mosquito B.Mk 25 Mosquito B.Mk 20s built in Canada and fitted with Packard Merlin 225 engines.
Mosquito FB.Mk 26 Mosquito FB.Mk 21s fitted with more powerful Packard Merlin 225 engines.
Mosquito T.Mk 27 Merlin 225 powered Mosquito T.Mk 22s.
Mosquito FB.Mk 29 Converted Mosquito FB.Mk 26s.
Mosquito NF.Mk 30 Like the Mosquito NF.Mk XIX with either Merlin 72, 76 or 113 engines.
Mosquito PR.Mk 32 Similar to the Mosquito PR.Mk XVI but for high altitude operations.
Mosquito PR.Mk 34 Fitted with Merlin 113 or 114 engines.
Mosquito B.Mk 35 Fitted with Merlin 113 or 114 engines.
Mosquito NF.Mk 36 Powered by Merlin 113 engines and with AI Mk IX radar fitted.
Mosquito NF.Mk 38 Like the Mosquito NF.Mk 36 but with some also powered by Merlin 114 engines.
Mosquito TT.Mk 39 Target tug.
Mosquito FB.Mk 40 Australian built Mosquito FB.Mk VIs powered by Packard Merlin 31 or 33s.
Mosquito PR.Mk 41 Australian built, used for photo reconnaissance and powered by Merlin 69 engines.
Mosquito FB.Mk 42 Sole converted Mosquito FB.Mk 40.
Mosquito T.Mk 43 Converted Mosquito FB.Mk 40s powered by Merlin 33s and featuring dual controls.
Type 463 Sole converted Mosquito Mk IV to carry "Highball".
Type 465 33 Mosquito Mk IVs converted to carry "Highball".



Photos

Click on a photo to view a larger version.

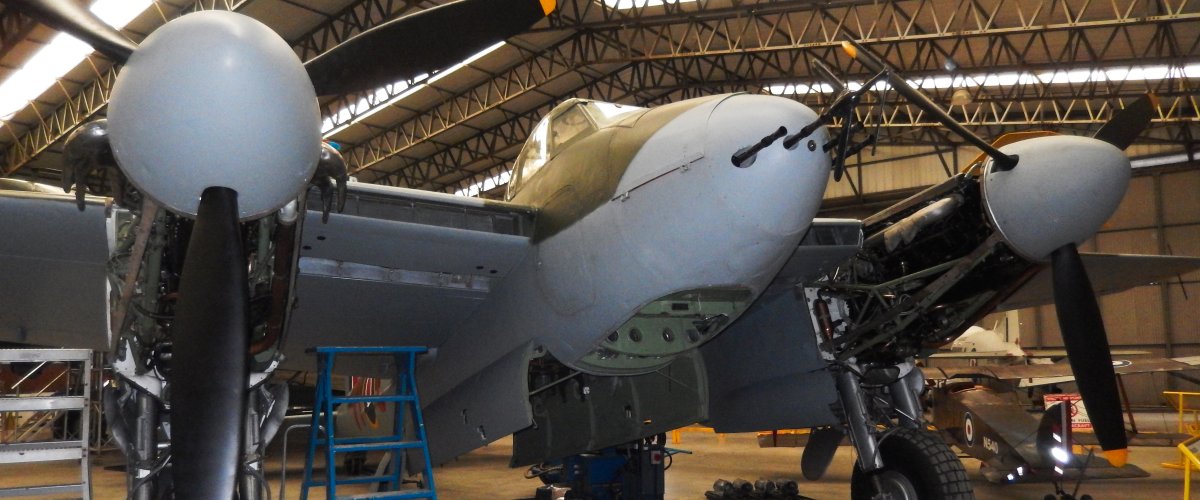

Prototype Mosquito Mosquito NF. Mk II Mosquito B. Mk 35

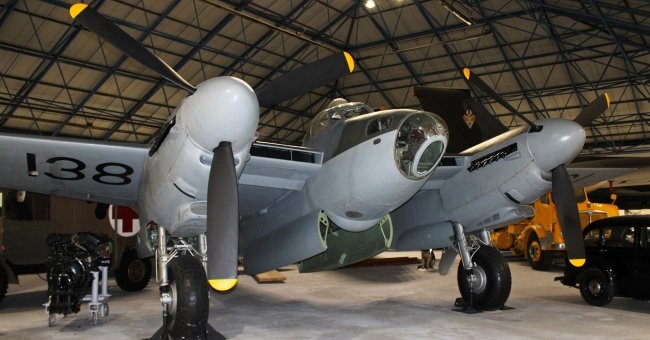

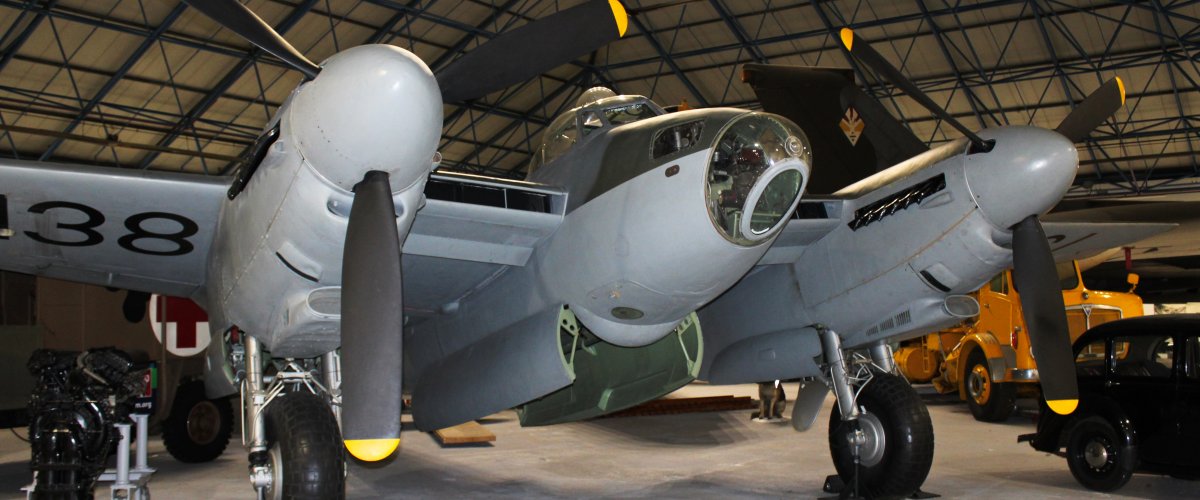

Mosquito TT.35



See This Aircraft

(C) = Cockpit only exhibit. (F) = Fuselage only exhibit. (R) = Remains of an aircraft.

Location

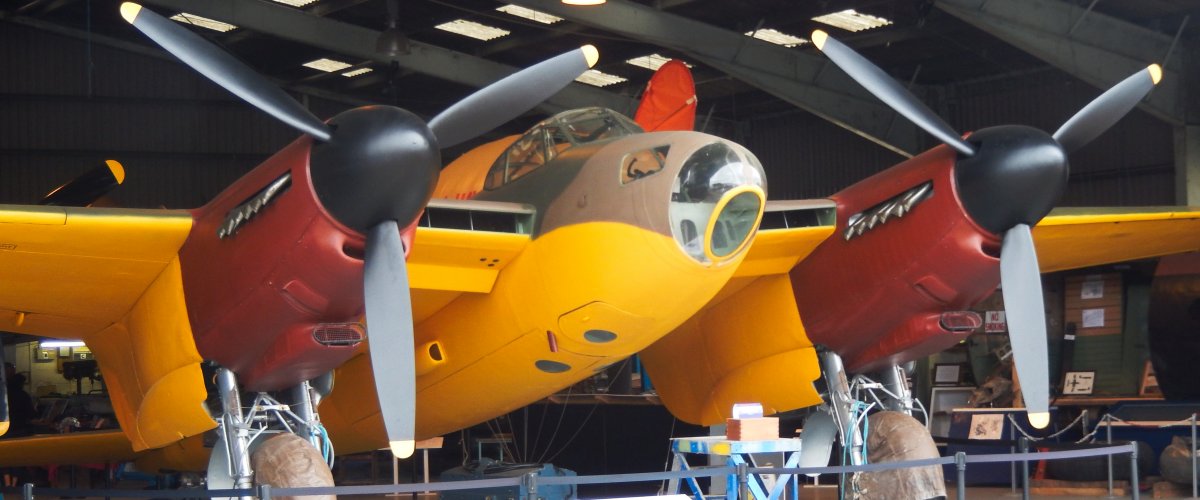

Prototype de Havilland Aircraft Museum
Mosquito FB.Mk VI
Mosquito B.Mk 35
Mosquito B.Mk 35 (R)
Mosquito TT.35 Imperial War Museum, Duxford
Mosquito NF.Mk II Lincolnshire Aviation Heritage Centre
Mosquito TT.35 Royal Air Force Museum, London

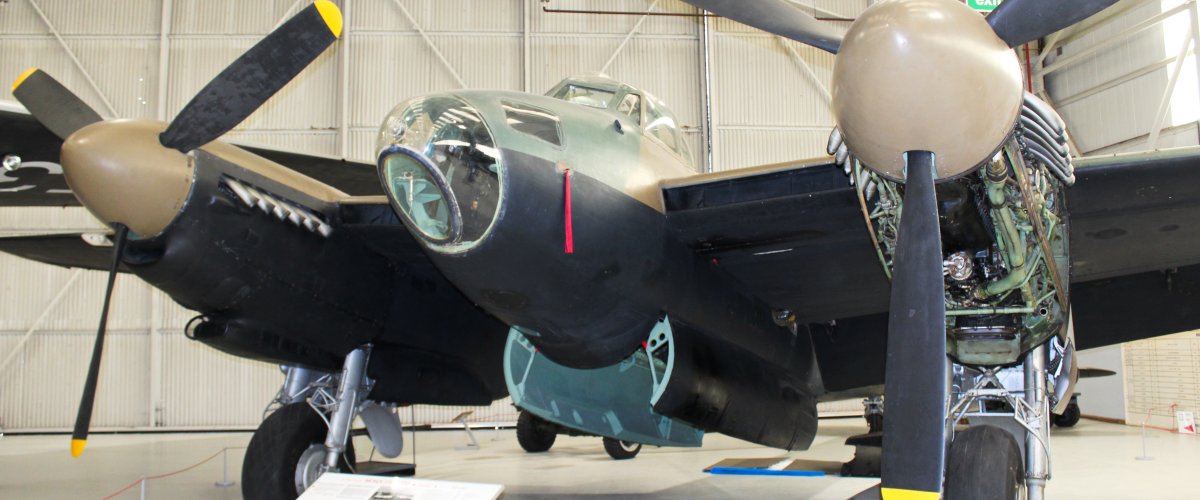

Mosquito B.Mk 35 Royal Air Force Museum, Midlands
